Page 1 of 2


Posted: July 14th, 2017, 6:33 pm
by pmd1980

Re: Roscosmos

Posted: July 14th, 2017, 6:41 pm
by pmd1980
On July14, 2017 at 09:36 Moscow time, Soyuz-2.1a lifted off from Site 31 at the Baikonur Cosmodrome. The launch mission is to deliver an Earth observation Kanopus-V-IK satellite and 72 smallsats piggybacked under the federal and commercial contracts of Glavkosmos to their target orbits.

The spacecraft launched under the Russian federal contracts are as follows:
MKA-N 1 6U-CubeSat (Russia, Dauria Aerospace in the order of Roscosmos);
MKA-N 2 6U-CubeSat (Russia, Dauria Aerospace in the order of Roscosmos).

The spacecraft launched under Glavkosmos contracts are as follows:
Flying Laptop microsatellite (Germany);
TechnoSat microsatellite (Germany);
WNISAT-1R microsatellite (Japan);
NorSat-1 microsatellite (Norway/Canada);
NorSat-2 microsatellite (Norway/Canada);
48 Dove 3U-CubeSats as part of Flock-2k (USA);
3 CICERO 6U-CubeSats (USA);
2 Corvus-BC 6U-CubeSats (USA);
8 LEMUR 3U-CubeSats (USA);
NanoACE 3U-CubeSat (USA);
Mayak 3U-CubeSat (the Moscow Polytechnic University);
Iskra-MAI-85 3U-CubeSat (the Moscow Aviation Institute);
Ekvador UTE-YuZGU 1U-CubeSat (the South-Western State University).

72 smallsats make the mission setting a record in a number of spacecraft to be injected into several target orbits among smallsats launches ever.

The flight timeline is as follows:
09:36:49 – launch vehicle lift-off;
09:38:46 – 1st stage separation;
09:41:36 – 2nd stage separation;
09:41:38 – fairing jettison;
09:45:37 – head module separation;
09:45:42 – 09:52:18 – Fregat upper stage flight to a transfer orbit;
10:35:01 – 10:36:27 – Fregat upper stage flight to the Kanopus-V-IK separation orbit;
10:38:07 – Kanopus-V-IK separation (orbit i=97.44°; H = 522.5km; h = 478.6km);
11:13:29 – 11:14:35 – Fregat upper stage flight to the second transfer orbit;
11:58:29 – 11:59:35 – Fregat upper stage flight to the separation orbit of a group of smallsats;
12:01:43 – 12:05:03 – Phase 1. Separation of 5 smallsats (orbits i=97.61°; H = 601.5-600.1km; h = 600.0-590.1km);
12:10:03 – 12:26:43 – Phase 2. Separation of 19 smallsats (orbits i=97.62-97.61°; H = 601.0-606.9km; h = 580.1-587.4km);
12:51:49 – 12:53:15 – Fregat upper stage flight to the third transfer orbit;
13:34:39 – 13:35:51 – Fregat upper stage flight to the separation orbit of a group of smallsats;
17:18:23 – 17:41:17 – Separation of 48 smallsats (orbits i=97.00-97.01°; H = 485.0-477.4km; h = 482.2-450.5km);
17:51:49 – 17:53:45 – Fregat upper stage flight to reentry orbit;
~18:18:49 – Fregat upper stage reentry (altitude – 100km), sinking in the Indian Ocean.
more info:

more info:

Re: Roscosmos

Posted: July 23rd, 2017, 2:53 am
by pmd1980
Maks 2017 - Roscosmos Pavilion

Re: Roscosmos

Posted: July 29th, 2017, 2:03 am
by pmd1980

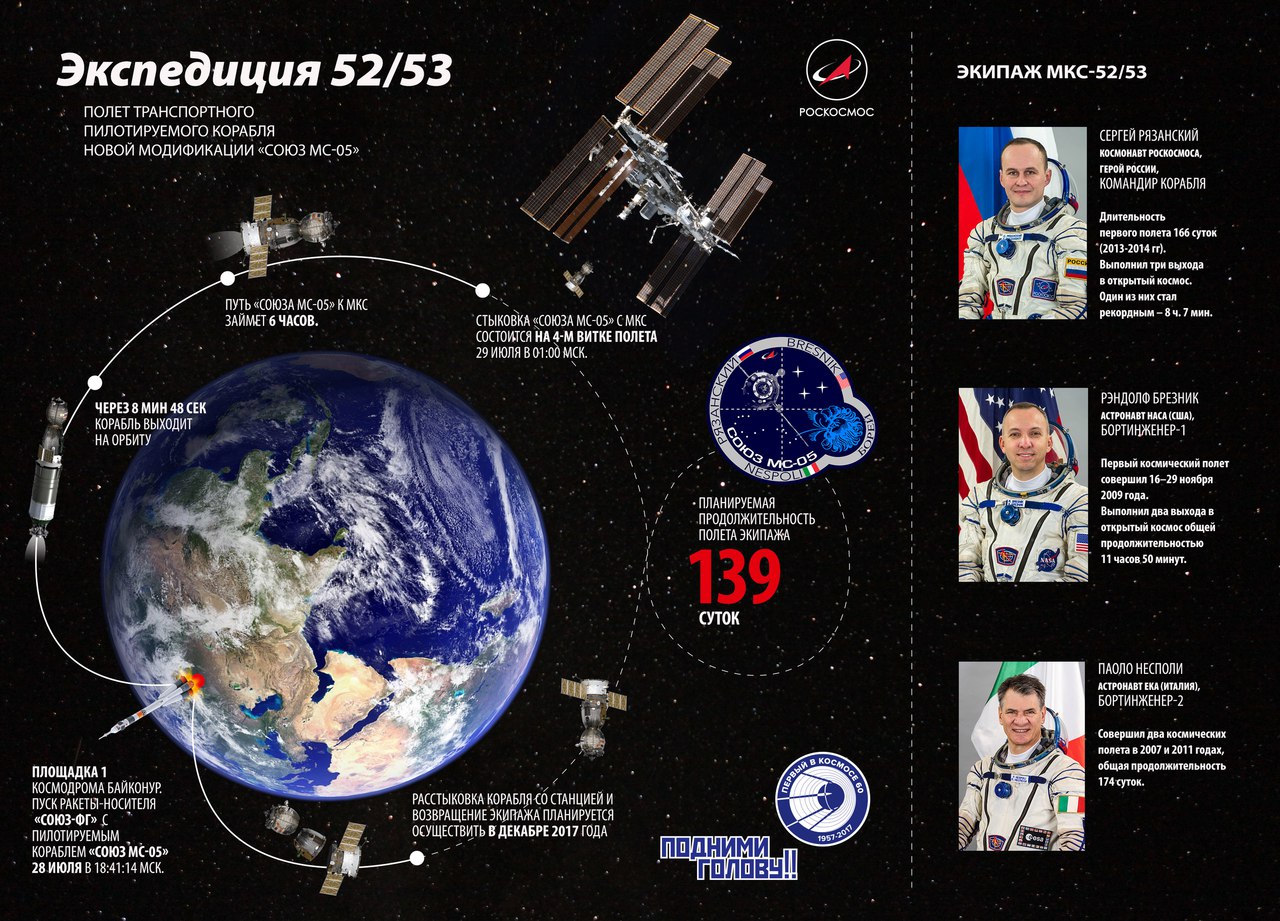

On July 28, 2017 at 18:41 MT launch vehicle Soyuz-FG and manned spacecraft Soyuz МS-05 with the crew of the next long-duration expedition successfully lifted off from Gagarin’s Launch Pad of BAIKONUR space center.
The spacecraft was successfully put into low Earth orbit and is headed for the International Space Station (ISS). The spacecraft crew consists of spacecraft commander, ROSCOSMOS cosmonaut Sergey RYAZANSKY, NASA astronaut Randolph BRESNIK and ESA astronaut Paolo NESPOLI.
Onboard the International Space Station Soyuz MS-05 crew will be met by ROSCOSMOS cosmonaut Fedor YURCHIKHIN and NASA astronauts Peggy WHITSON and Jack FISHER. Therefore, the Expedition 52 (ISS-52) crew complement will be augmented from three to six crewmembers.
According to telemetry data, the spacecraft insertion into low-Earth orbit and separation from the third stage of the launch vehicle occurred on schedule. Deployment of all antennas and solar array panels was detected immediately after the separation. The systems and assemblies of the upgraded spacecraft operate normally. The crew reports a good health status.
Spacecraft Soyuz MS-05 will approach the ISS using a short six-hour rendezvous capability. The spacecraft shall reach the station after about six hours and twenty minutes in the fifth orbit of its free flight. A fully automatic docking with the Mini Research Module (MRM1) Rassvet is scheduled for July 29 at 01:01 MT.

Soyuz MS-05 mission at a glance:
  • Spacecraft designation Soyuz MS-05 (11F732 No. 736), ISS mission 51S
  • Launch vehicle Soyuz-FG
  • Launch site Baikonur, Site 1, Pad 5
  • Crew Sergey Ryazansky (Roskosmos); Randy Bresnik (NASA) (Commander ISS Expedition 53); Paolo Nespoli (ESA)
  • Launch date and time 2017 July 28, 18:41:12.285 Moscow Time (11:41 a.m. EDT; 21:41 Baikonur Time)
  • Docking at ISS date and time 2017 July 29, 00:54 Moscow Time (5:54 p.m. EDT on July 28)
  • Docking location MIM1 Rassvet on the Russian segment
  • Landing 2017 Dec. 14
  • Mission duration 139 days (4.5 months)


more videos about preparation Soyuz MS-05 they are in spoiler

Rendezvous and docking with ISS

Re: Roscosmos

Posted: August 1st, 2017, 10:00 pm
by pmd1980
Launch of Souz MS-05 360˚

Re: Roscosmos

Posted: August 17th, 2017, 3:26 am
by pmd1980
Proton launches first Blagovest military comsat
The second Proton mission of 2017 lifted off with the first Blagovest communications satellite for the Russian Ministry of Defense. Blagovest is a Russian religious term meaning "good news." Due to the military nature of the payload, only limited information is expected to be released on the mission and no live coverage of the liftoff on August 17 was provided.
A series of Blagovest communications satellites has been developed and manufactured at ISS Reshetnev in Zheleznogorsk, Russia, for the Russian Ministry of Defense.
The Blagovest satellite is equipped with a new-generation communications payload developed by ISS Reshetnev in cooperation with the European consortium Thales Alenia Space. Operating in Ka- and C-band, the transponders were designed to enable a broad-band Internet access, data transmission, broadcasting of TV and radio-programs, video-conferencing and telephone communications. Though the satellite is to be owned and operated by the Russian military, it was designed to transmit via open communications channels, according to ISS Reshetnev.
The satellite is based on the ISS Reshetnev's Ekspress-2000 platform, the company's largest standard spacecraft bus. The comparisons of Ekspress-2000 to available visuals of the Blagovest reveal a large expansion of the payload module and enlarged radiators.
Known specifications of the Blagovest satellite:
  • Spacecraft designation(s): Blagovest No. 11L, 14F149
  • Life span: 15 years
  • Orbital positions: 45 East, 128 East
  • Communications payload: 36 (?) Ka/Q-band and C-band (?)
  • Spacecraft bus: Ekspress-2000
  • Attitude control system: Three axis
  • Spacecraft developer: ISS Reshetnev, Zheleznogorsk
  • Communications payload developer: ISS Reshetnev, Zheleznogorsk, Russia; Thales Alenia Space, Cannes, France
  • Attitude control system sensors developer: Geofizika-Kosmos, Moscow
  • Insurance (Russkiy Strakhovoy Tsentr): 6.5 billion rubles
  • Launch vehicle: Proton-M/Briz-M
  • Launch date and time: 2017 Aug. 17, 01:07 Moscow Time
  • Launch site: Baikonur, Site 81, Pad 24
more info:

Re: Roscosmos

Posted: August 17th, 2017, 9:57 am
by pmd1980
Proton-M carrier rocket with defense satellite launched from Baikonur space center
MOSCOW, August 17. /TASS/. A Proton-M carrier rocket with a military satellite has been launched from the Baikonur space center in Kazakhstan, the press service of the Russian defense ministry said on Thursday.
"A Proton-M heavy-lift launch vehicle with a defense ministry’s satellite has been successfully launched from the Baikonur space center," the press service said.
The rocket was launched under control of commander of the space troops and deputy commander-in-chief of the Russian aerospace forces, Colonel General Alexander Golovko.
"All pre-launch operations were conducted in a routine mode. The launch and the flight of the rocket were monitored by the ground-based automated control system," the press service said.

Re: Roscosmos

Posted: October 2nd, 2017, 4:45 am
by pmd1980

Re: Roscosmos

Posted: November 30th, 2017, 2:27 am
by pmd1980
On November 28, 2017 at 08:41 Moscow time, Soyuz-2.1b lifted off from VOSTOCHNY Cosmodrome. The launch mission is to deliver an Earth observation Meteor-M № 2-1 satellite, an Earth observation Baumanets-2 satellite and 17 smallsats piggybacked under the federal and commercial contracts of Glavkosmos to their target orbits.
According the flight program, the first three stages of Soyuz-2.1b have taken the ascent unit into the specified intermediate orbit. However, during the first planned communication session with the satellite, it was not possible to establish a connection due to its absence in the target orbit. Currently, the information is being analyzed. Unofficial information reported that the Fregat had crashed in the Antarctica.

Re: Roscosmos

Posted: December 7th, 2017, 5:39 pm
by pmd1980
Soyuz-2.1b with Kosmos 2524 (Lotos-S1)
02.12.2017 at 10:43 UTC the Russian Aerospace Forces launched the Soyuz-2.1b launch vehicle from the Plesetsk State Test Cosmodrome in the interests of the Russian Defence Ministry. The vehicle was launched under the leadership of the Commander of the Space Forces – Deputy Commander of the Aerospace Forces Colonel General Alexander Golovko. Launch of the vehicle and orbiting of the spacecraft were successful. In three minutes the Soyuz-2.1b was tracked by ground systems of the State Test Centre named after German Titov. All systems of the spacecraft are functioning.
Credit: Ministry of Defence of the Russian Federation, Roscosmos
Infographics are illustrative only
